Overview

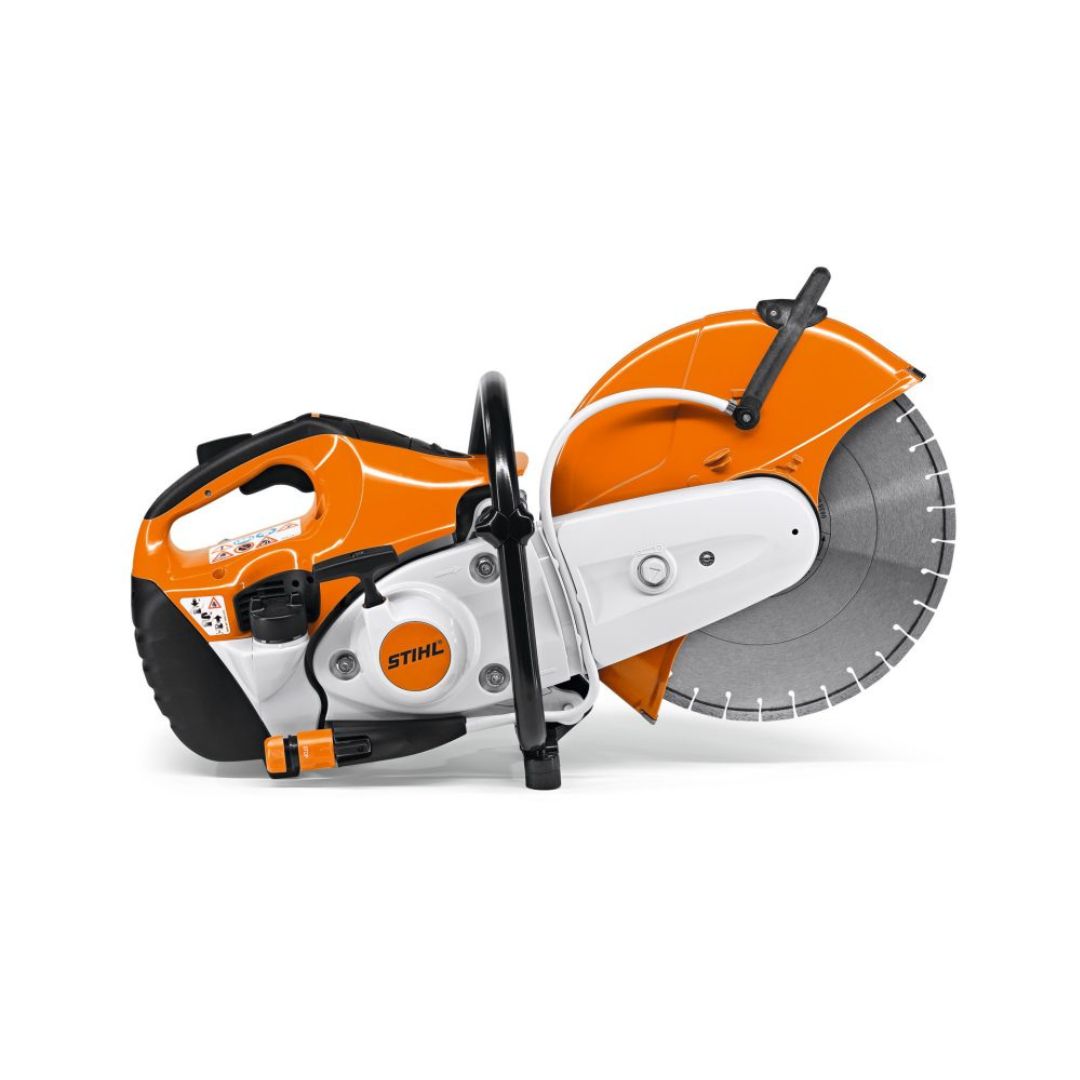

The STIHL TS 410 Petrol Cut‑off Machine is a compact, robust, and highly efficient professional cut-off saw designed for demanding construction and maintenance work. Powered by a high-performance 66.7 cm³ STIHL 2-MIX engine, it delivers a strong 3.2 kW (4.4 HP) output while maintaining low fuel consumption and reduced exhaust emissions in line with EU Stage V regulations.
Built around a 300 mm (12″) cutting disc with a maximum cutting depth of 100 mm, the TS 410 is ideal for precise cutting of concrete, masonry, asphalt, steel, and paving materials. Its optimised balance, ergonomic handle design, and low vibration levels (3.9 m/s²) ensure excellent control and reduced operator fatigue during extended use.
Designed for reliability on site, the TS 410 features STIHL’s long-life air filtration system with cyclone pre-separation, removing up to 80% of intake dust before it reaches the filter. This dramatically extends service intervals and minimises downtime. The integrated water connection provides effective dust suppression and cutting wheel cooling, delivering cleaner, safer operation in all conditions.
With ElastoStart, a decompression valve, and a manual fuel pump (primer), the TS 410 starts smoothly with fewer starting strokes, even after longer breaks in use. Supplied with an abrasive cutting wheel and compatible with the STIHL FW 20 guide cart, it offers flexibility for both hand-held and precision straight-cut applications.
Key Features
-
Genuine STIHL TS 410 professional petrol cut-off machine
-
66.7 cm³ STIHL 2-MIX stratified charge engine producing 3.2 kW (4.4 HP)
-
Reduced fuel consumption and lower emissions (EU Stage V compliant)
-
300 mm (12″) cutting disc with up to 100 mm cutting depth
-
Low vibration levels (3.9 m/s²) for improved comfort and control
-
Long-life air filter system with cyclone pre-separation (up to 80% dust removal)
-
Integrated water connection for dust binding and cutting wheel cooling
-
Semi-automatic belt tensioning for extended belt and bearing life
-
Ergonomic handle for precise guidance and accurate cutting
-
ElastoStart, decompression valve, and primer pump for effortless starting
-
Bayonet fuel cap for tool-free opening
-
Suitable for hand-held use or with the STIHL FW 20 cart
-
Supplied with abrasive cutting wheel, ready for site use
Technical Data
| Specification | Value |
|---|---|
| Displacement | 66.7 cm³ |
| Power output | 3.20 kW / 4.40 HP |
| CO₂ emissions | 747 g/kWh |
| Weight (without cutting disc) | 9.6 kg |
| Cutting disc diameter | 300 mm / 12″ |
| Maximum cutting depth | 100 mm |
| Device length (with disc) | 67.5 cm |
| Sound pressure level | 98 dB(A) |
| Sound power level | 109 dB(A) |
| Vibration level (left/right) | 3.9 / 3.9 m/s² |
Typical Applications
The TS 410 is ideal for construction, landscaping, utilities, and civil engineering work. Common uses include cutting concrete slabs, kerbstones, paving blocks, asphalt, bricks, and metal pipes. Its compact size and balanced design make it especially popular with professional contractors, groundworkers, hire fleets, and maintenance teams requiring reliable daily performance with minimal servicing.
