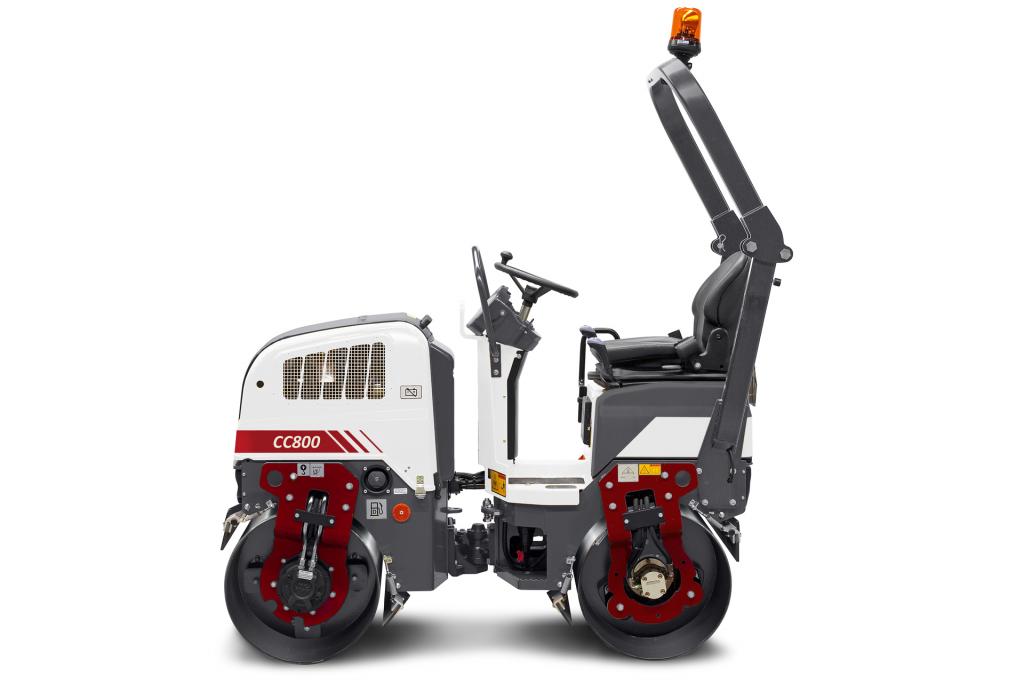

Dynapac CC800 Plus Double Drum Vibratory Roller
Engineered by Dynapac – A Fayat Group Company, alongside BOMAG
The Dynapac CC800 Plus is a compact, high-performance double drum vibratory roller designed for precision asphalt compaction in confined spaces. As part of the Fayat Group, which also encompasses industry leaders like BOMAG, Dynapac brings decades of expertise and innovation to road construction equipment.
🔧 Key Features & Benefits
-
Dual Drum Drive & Vibration: Ensures uniform compaction across both drums, enhancing surface smoothness and structural integrity.
-
Advanced Kubota D1105-E4B Engine: A 3-cylinder, water-cooled diesel engine delivering 18 kW (24 hp) at 2800 rpm, compliant with Stage V / TIER 4f emissions standards for reduced environmental impact and fuel efficiency.
-
Dyn@Link Telematics: Enables real-time monitoring and efficient fleet management, optimizing operational productivity.
-
Auto Vibration Control (AVC) & Auto Water Control (AWC): Automated systems that enhance compaction quality and prevent asphalt sticking, reducing manual intervention.
-

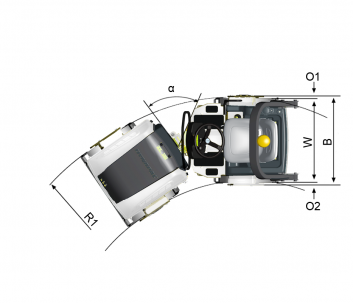

Compact Design with High Maneuverability: With a drum width of 800 mm and a steering angle of ±34°, it offers excellent maneuverability in confined spaces.
-
Robust Safety Features: Equipped with a foldable ROPS, emergency stop, backup alarm, and interlock brake system to ensure operator safety.
-
Operator Comfort: Features a rubber-mounted platform, ergonomic controls, and a cup/can holder, providing a comfortable working environment.
📊 Technical Specifications
-
Operating Mass: 1575 kg
-
Maximum Operating Mass: 1665 kg
-
Drum Width: 800 mm
-
Drum Diameter: 588 mm
-
Speed Range: 0 – 9 km/h
-
Fuel Tank Capacity: 23 liters
-
Vertical Oscillation: ±6°
-
Hydraulic System: Features an axial piston pump with variable displacement and servo, coupled with two radial piston motors for consistent performance.

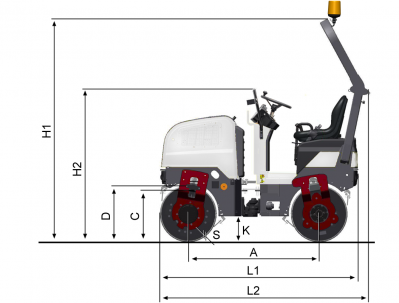

📐 Dimensions
-
Length: 2040 mm
-
Width: 874 mm
-
Height (with ROPS): 2300 mm
-
Wheelbase: 1350 mm
-
Ground Clearance: 250 mm
-
Curb Clearance: 455 mm
-
Overhang (Right/Left): 35 mm
-
Drum Shell Thickness: 14 mm
