Stihl WP 300 Petrol Water Pump | Genuine STIHL OEM Part VB030112000
Overview

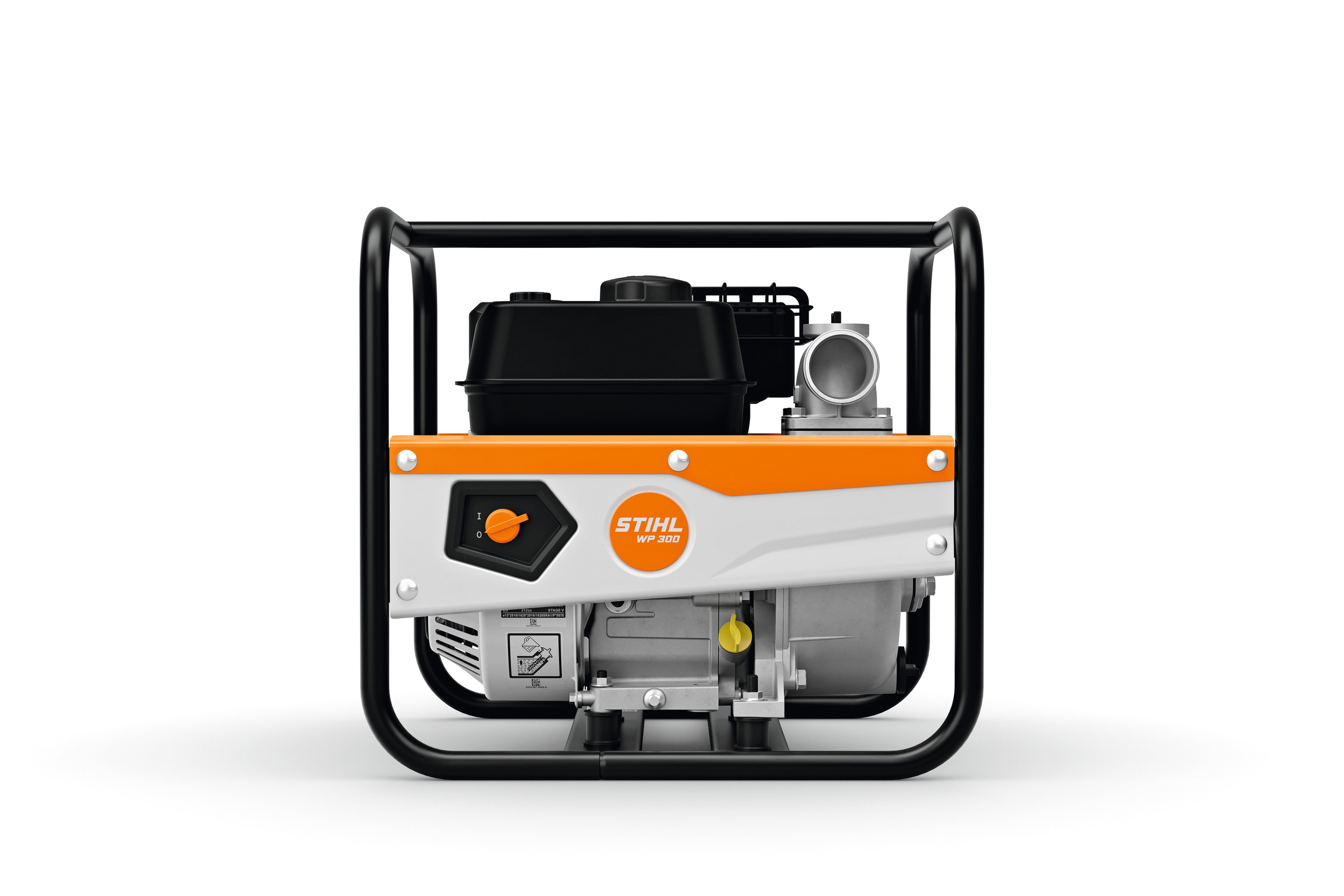

The Stihl WP 300 is a powerful and reliable petrol water pump designed for moving fresh water efficiently in a range of environments. Whether you’re draining a reservoir, irrigating crops, or managing water on a construction site, the WP 300 offers strong performance and easy operation. Built with a robust STIHL engine and durable frame, this pump is ideal for both professional and private use.
Key Features
-

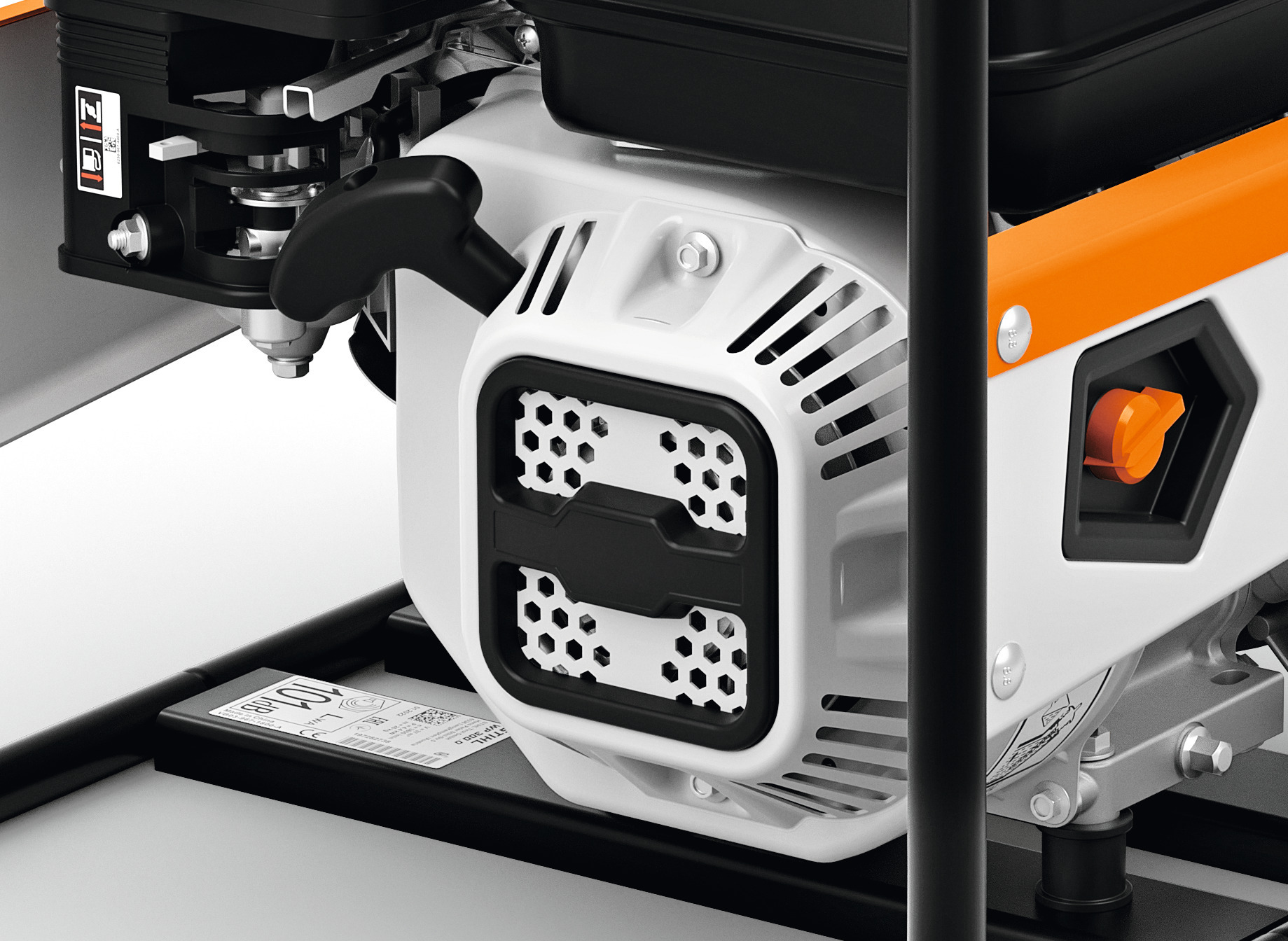

Fitted with a powerful STIHL EHC 4-stroke petrol engine
-
Engine power: 6 HP (4.4 kW) with a displacement of 212 cm³
-
Maximum flow capacity of 37 cubic metres per hour (615 litres per minute)
-
Self-priming design with 2 inch suction and pressure hose connections
-
Total head height of 33 metres, maximum suction lift of 7 metres
-

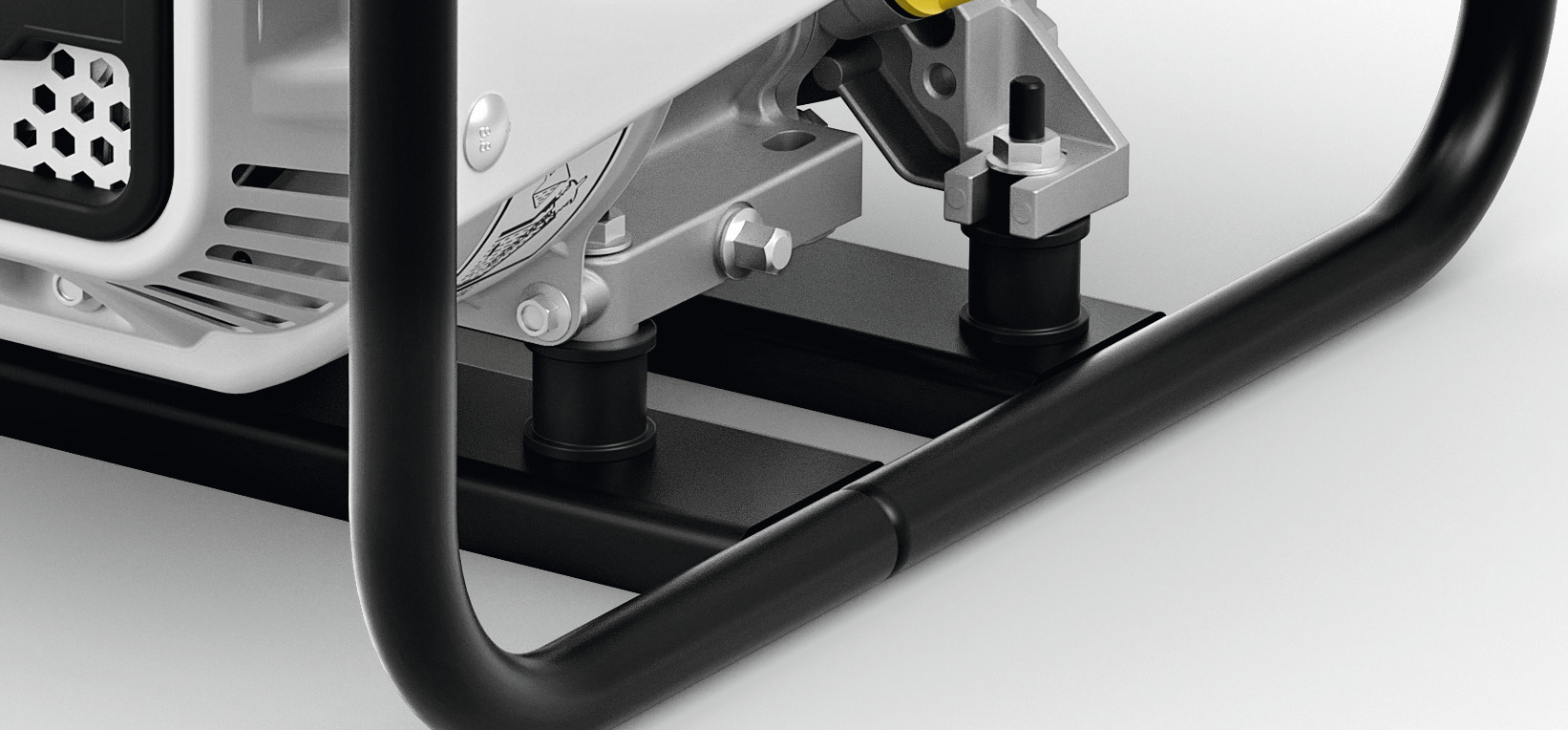

Integrated AV system for reduced vibration and smooth operation
-
Sturdy frame for protection and stability on all surfaces
-
Built-in low oil sensor to protect the engine from damage
Technical Specifications
| Specification | Details |
|---|---|
| Engine type | EHC 605.0 |
| Engine power | 6 HP (4.4 kW) |
| Displacement | 212 cm³ |
| Rated speed | 3600 rpm |
| Tank capacity | 3.6 litres |
| Suction hose connection | 2 inch |
| Pressure hose connection | 2 inch |
| Maximum flow rate | 615 litres per minute |
| Maximum delivery pressure | 3 bar |
| Maximum suction lift | 7 metres |
| Total head height | 33 metres |
| Weight (dry) | 26 kg |
| Dimensions | 47 cm (L) x 44 cm (W) x 44 cm (H) |
| Sound pressure level (LpA) | 86 dB(A) |
| Sound power level (LWA) | 101 dB(A) |
| COâ‚‚ emissions | 811 g/kWh |
Applications
Perfect for water transfer on farms, building sites, and private land. Ideal for tasks like irrigation, draining flooded areas, or moving water from tanks and reservoirs.
Compatibility
Suitable for use with:
-
Stihl WP 300
-
Models requiring 2-inch petrol-powered water pumps with similar flow specs
Important Information
This water pump is approved for use with clean, fresh water only.
Do not use with salt water, petrol, oil, solvents, acids, food products, or water above 40°C.
Suction and pressure hoses are not included. A PVC suction hose is recommended.
OEM and Alternate Part Numbers
-
OEM: VB030112000
-
Also known as: WP300
