Winged, Three Point Linkage
The Major MJ71-540 is the widest three-point linkage model in the Swift roller mower range. With a 5.40m working width and an output of 14.9 acres per hour, it is built for high-output operations on large sports grounds, racecourses, airfields, polo grounds and expansive municipal parks where coverage rate is as important as finish quality.
Designed for tractors in the 70 to 120HP range running at 1000 PTO rpm, the MJ71-540 shares the same Strenx 700 MC structural steel construction, hot-dip galvanised finish and gearbox driveline platform as the rest of the Swift range. Eight rotors with 16 blades operate at 75 m/s blade tip speed, delivering a clean, even striped finish across the full working width on every pass.
Backed by an industry-leading 3-year Major warranty and available from Cambrian Plant Sales in South Wales, with genuine spare parts dispatched next day.
Key Features
Gearbox-Driven Driveline
No belts. Consistent 75 m/s blade tip speed across eight rotors. No tensioning, no slipping, no unplanned downtime.
60mm Blade Overlap
Eight rotors with 16 blades and 60mm overlap produce a clean, even cut across the full 5.40m width on every single pass.
Two-in-One Blade System
Converts between rigid and swinging blade mode with a simple on-site adjustment. No blade changes required.
Full-Length Rear Roller
Follows ground contours across the full working width. Prevents scalping and produces defined stripes on every pass.
Sealed Internal Roller Bearings
Taper bearings with wiper and bearing seals. Complete protection against moisture, soil ingress and debris.
Simple Height Adjustment:
10-130mm Supports year-round mowing from fine presentation cuts to autumn maintenance heights.
Walterscheid PTO Drive Shafts
Fitted as standard throughout the Swift winged range.

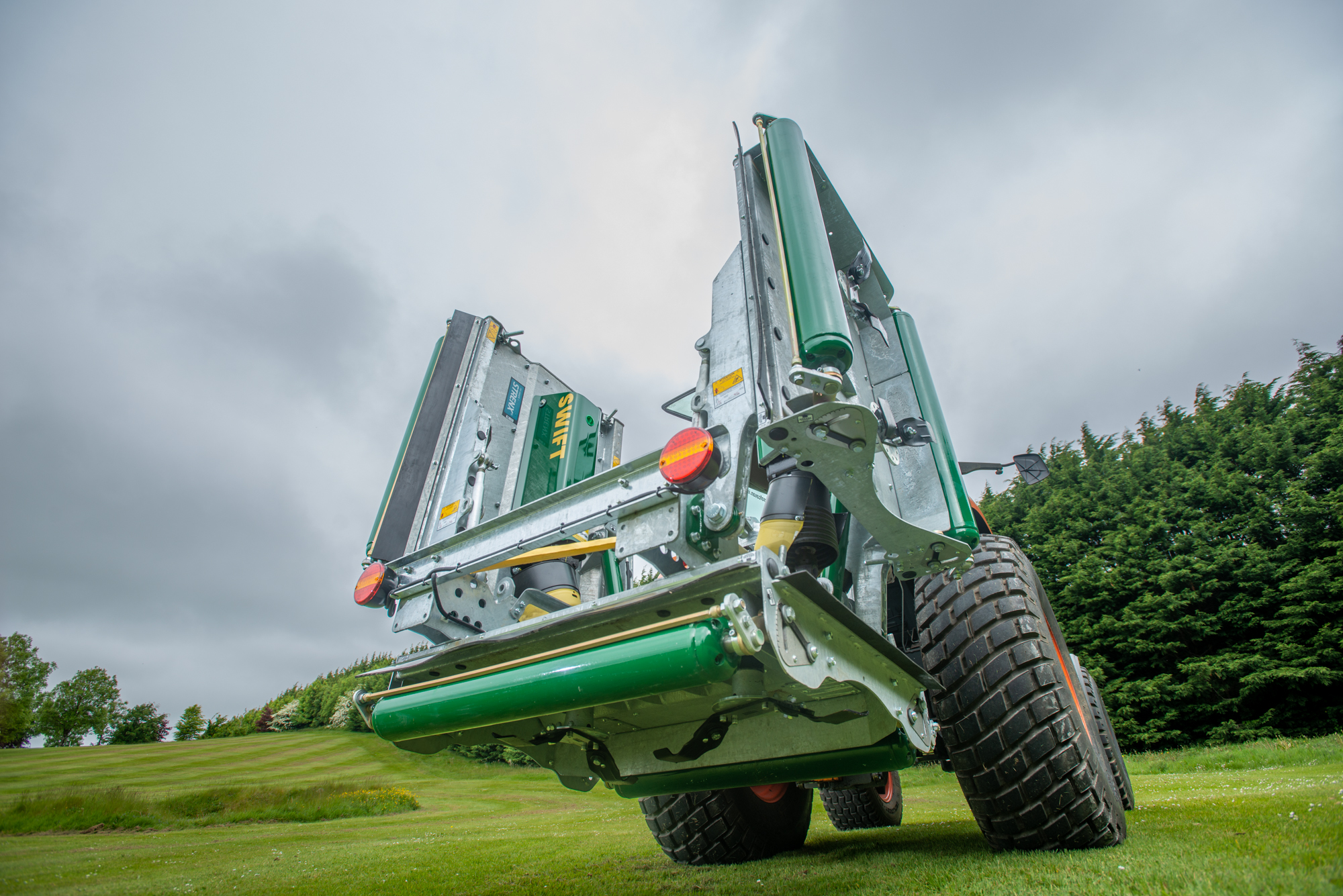

Folding Wings, 1.90m Transport Width
Despite a 5.40m working width, the wings fold to the same compact 1.90m transport width as the smaller Swift models. Suitable for standard field gateways and public road movement.
LED Road Lighting Kit Fitted as standard.
Hot-Dip Galvanised Finish
Galvanised to EN ISO 1461:2009 using Strenx 700 MC structural steel.
3-Year Major Warranty
Industry-leading standard warranty covering parts and workmanship.
Specifications
| Specification | MJ71-540 |
|---|---|
| Overall Width | 5.54m (18′ 2″) |
| Working Width | 5.40m (17′ 9″) |
| Transport Width | 1.90m (6′ 3″) |
| Tractor Power Required | 70-120 HP |
| PTO Speed | 1000 rpm |
| Cutting Height Range | 10-130mm |
| Number of Rotors | 8 |
| Number of Blades | 16 |
| Blade Tip Speed | 75 m/s |
| Machine Weight | 1,270 kg |
| Mowing Rate (at 7mph) | 14.9 acres/hr |
| Warranty | 3 Years |
Suitable Applications
The MJ71-540 is recommended for the following applications:
- Large sports grounds and full-size football pitches
- Golf course fairways and semi-rough
- Racecourses and polo grounds
- Municipal parks and large recreation grounds
- Airfields
- Turf farms
Why Choose the Major MJ71-540?
For operators who need maximum productivity from a three-point linkage mower, the MJ71-540 offers a 5.40m cut that fits through standard gateways and transports on public roads without specialist arrangements. At 14.9 acres per hour, it reduces the number of passes per field and the time spent on each site.
The gearbox driveline and galvanised Strenx steel construction mean lower maintenance costs and a longer working life compared to belt-driven alternatives. The 3-year Major warranty provides additional reassurance on a significant capital purchase.
Cambrian Plant Sales is an authorised Major Equipment dealer covering Wales and South UK. Genuine Major spare parts are available with next-day dispatch on stocked items.
Frequently Asked Questions
What PTO speed does the MJ71-540 require?
The MJ71-540 runs at 1000 PTO rpm. This is different from the MJ71-340 and MJ71-400 which run at 540. Please confirm your tractor’s PTO capability before ordering.
What tractor HP is needed for the MJ71-540?
70 to 120HP. It connects via standard three-point linkage.
What is the transport width of the MJ71-540?
The wings fold to 1.90m (6′ 3″), the same compact transport width as the smaller Swift winged models.
Is the MJ71-540 suitable for racecourses?
Yes. The Swift winged range is a recommended choice for racecourse maintenance. If you require a racecourse-specific configuration, the trailed MJ71-540T is also available with an optional castor wheel setup for varied grass height performance.
Where can I buy the Major MJ71-540 in Wales?
Cambrian Plant Sales in Cardiff. Call 02920 569 311 or use the enquiry form on this page.
