Dynapac CC1000 Double Drum Vibratory Roller
Expertly Provided by Cambrian Plant and Sales – 50 Years of Trusted Experience
The Dynapac CC1000 Double Drum Vibratory Roller is an efficient and reliable choice for asphalt compaction in tighter spaces, including sidewalks, cycle paths, and smaller road surfaces. Leveraging Cambrian Plant and Sales’ 50 years of industry-leading experience, this compact roller ensures consistent, high-quality compaction results.
🔧 Key Features & Benefits
- Compact and Versatile: 1000 mm compaction width, ideal for small to medium paving applications.
- Efficient Kubota Engine: Powered by a robust Kubota D1105-E4B T4f water-cooled diesel engine, delivering 18 kW (24 hp) at 2800 rpm, compliant with Stage IV / TIER 4f emissions.
- Dyn@Link Technology: Allows effective remote monitoring and fleet management, optimizing productivity and efficiency.
- User-friendly Design: Features ergonomic controls, excellent visibility, and operator-friendly comfort to reduce fatigue.
- Reliable Safety Systems: Integrated failsafe braking systems in both drums ensure maximum safety during operation.
📊 Technical Specifications
- Operating Mass (with ROPS): 1685 kg
- Maximum Operating Mass: 1750 kg
- Compaction Width: 1000 mm
- Drum Diameter: 584 mm
- Speed Range: 0-9 km/h
- Fuel Tank Capacity: 23 liters
- Vertical Oscillation: ±6°

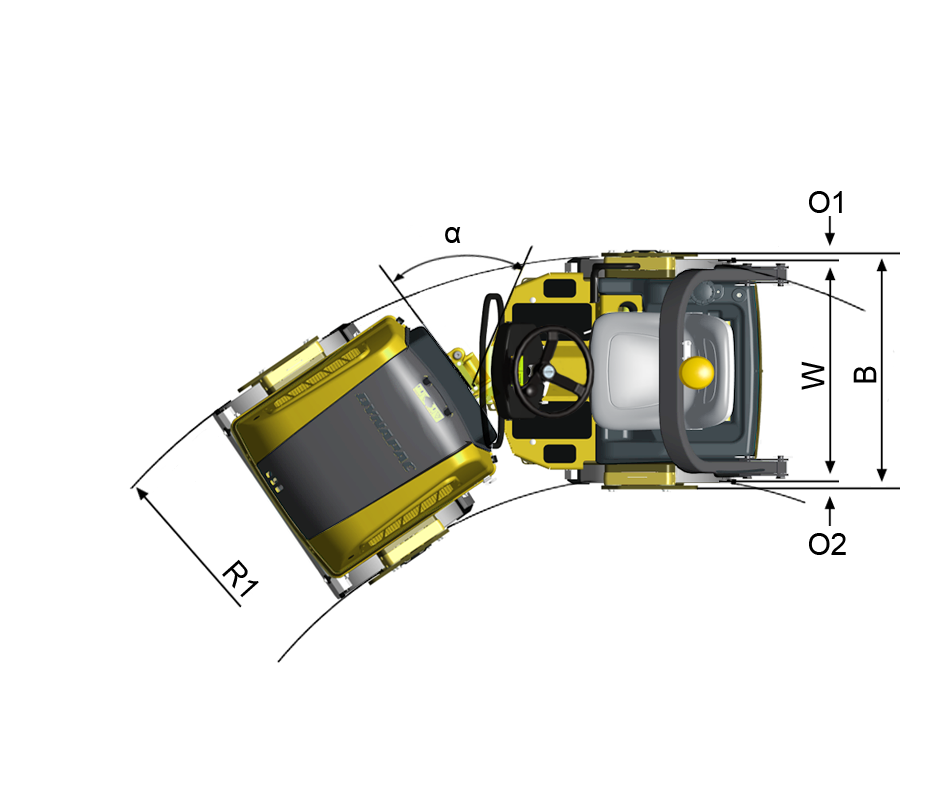

- Turning Radius (outside): 2750 mm
- Steering Angle: ±34°

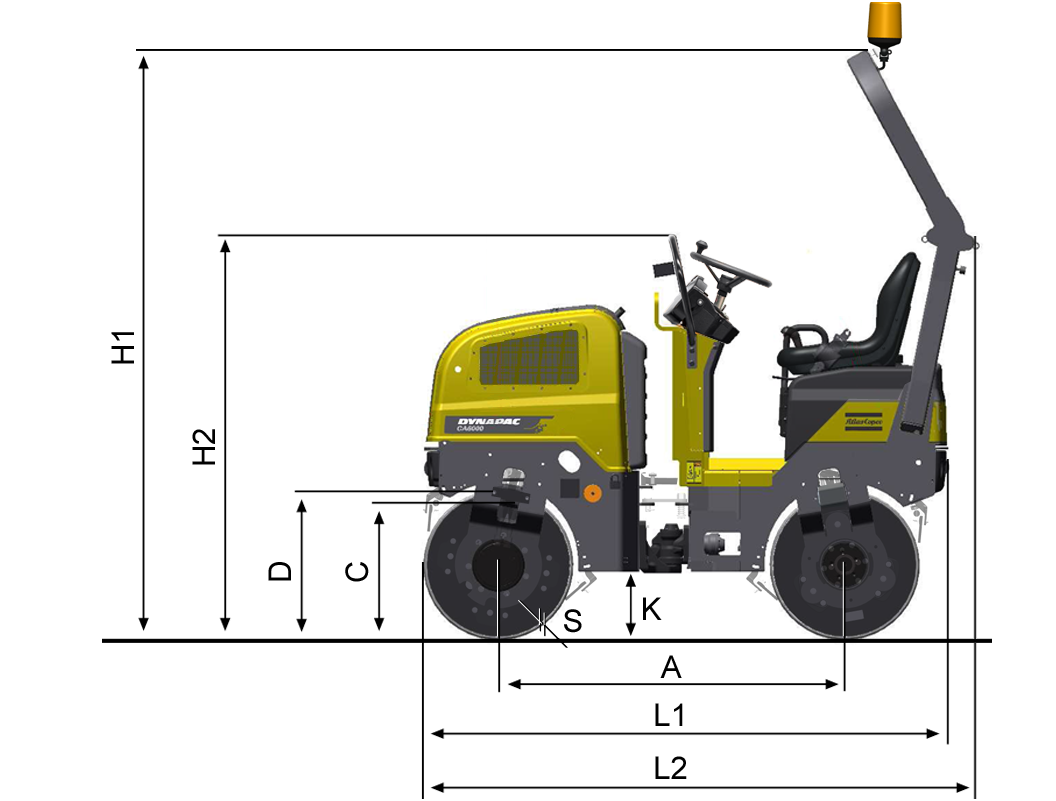

📐 Dimensions
- Length (with ROPS): 2095 mm
- Width: 1070 mm
- Height (without ROPS/Cab): 1585 mm
- Ground Clearance: 250 mm
- Curb Clearance: 465 mm
- Drum Shell Thickness: 13 mm
