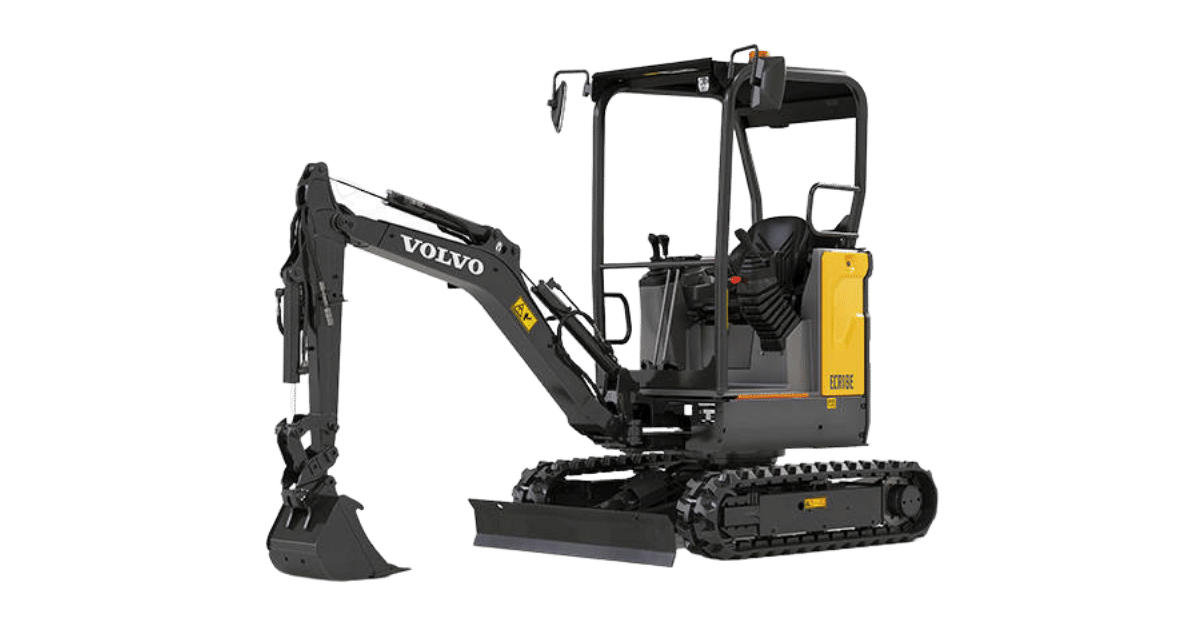

The ECR18E from Volvo Construction Equipment features an ultra-short swing radius, making it super agile and safer when working in confined urban applications. The new model complements the Volvo offer, which so far comprises seven short swing radius models, ranging from 1.8 to 9.5 tonnes. Â Robust by design thanks to a high-profile counterweight, the machine is made for easy maintenance, with 50 hours greasing intervals and a hinged fuel tank providing best-in-class access to the engine compartment. The engine can also be fitted with auto-idle and auto engine shutdown features, which both reduce noise disturbance, service costs and fuel consumption.
This model features cab, quick hitch & 3 buckets.
Specifications:Â
- Engine: Volvo D0.9A
- Gross power: 12 kW
- Net power: 11.8 kW
- …at engine speed: 2,300 rpm
- Operating weight: 1,700 kg
- Operating weight, canopy version: 1,700 kg
- Bucket capacity: 0.01 – 0.05 m³
- Travel speed, low / high: 1.8 / 3.5 km/h
- Slewing speed: 9.5 rpm
- Breakout force: 12.9 kN
- Tear out force (arm breakout force): 8 kN
- Overall width: 995 – 0 mm
- Overall length: 3,431 mm
- Main hydraulic pump max. flow: 34 l/min
